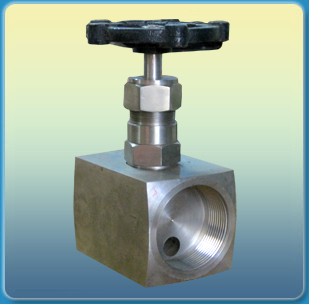

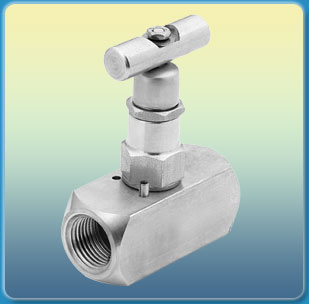

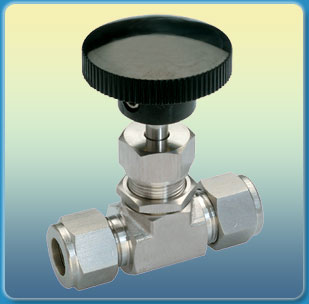

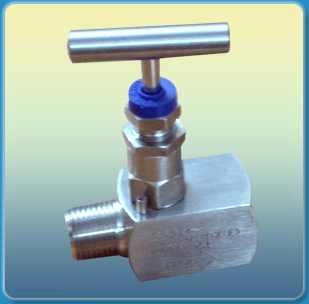

We offers Straight, Angle, Cross, Union Bonnet & Line Mounting types of industrial needle valves that are used in flow metering applications. These industrial needle valves such as stainless steel needle valves, brass needle valves, high pressure needle valves meet the constant, calibrated, low flow rate need. The use of SS316 / SS304 / CS Brass / Monel also available with MR-01.75 standard, makes these brass, monel, stainless steel needle valves and high pressure needle valves durable and rugged in use.

The body construct is of forged bar stock. We design & develop industrial needle valves, high pressure needle valves & other stainless steel needle valves in all variations to meet diverse fluid control needs. Apart from standard dimensions we also cater to custom requirements of buyers.


Design : Straight, Angle, Cross, Union Bonnet & Line Mounting
Size Range : 1/8' to 2'
End Connection : NPT / BSP / SW / BW /ODT
Material : SS316 / SS304 / CS Brass / Monel also available with nace MR-01.75 standard.
Pressure Rating : 5000 psig to 10,000 psig








Features

  • Forged or Bar stock body construction.
  • Straight or angle pattern with Panel Mounting Optional.
  • Integral Bonnel with one-piece body is available with straight and angle patterns.
  • Back seating provide anti-blow out of stem.
  • Variety of stem, rotating type, non-rotating type tip, and satellite filled tip.
